ASP

Active Service Pages with iNetGrowX

This section presents an example of an Active Service Page (ASP) that uses iNetGrowX to compose web pages. The ASP uses the member functions of iNetGrowX. For more information about the member functions, please see the section “iNetGrowX.”

The following example is written using the Visual Basic Script (VBScript). The ASP page generates a list of all inputs, outputs, variables, and parameters. The parameter values are written inside text boxes, so that you may change their values. The page retrieves all information (names and values) from the controller. The controller IP address is the default “192.168.0.65” assumed to be on a local private network.

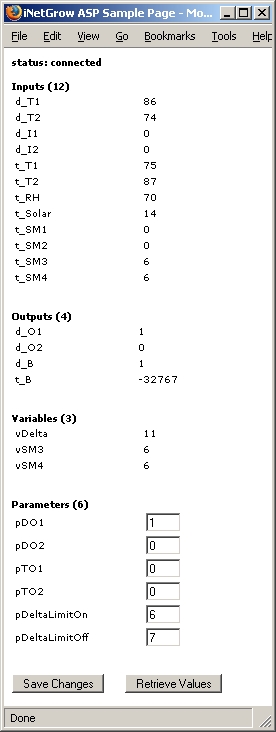

You may view the current state of the controller at the iNetGrow server or see a screen shot of the page generated by this ASP.

Note that this page simply enumerates all inputs, outputs, variables, and parameters. In this respect, it works with any controller. Often, a customized page that reflects the specific aspects of a given application is desired. Customization may include descriptive titles and prompts as well as specific user input fields, such as radio buttons or drop-down lists. Here is a screen shot of such a page and its source.

<% option explicit %>

<html>

<head>

<title>iNetGrow ASP Sample Page</title>

<style>

td{width:150px; font-family:Verdana; font-size:12px;}

body{font-family:Verdana; font-size:12px;}

</style>

</head>

Dim oGrow, n, nNumInputs, nNumOutputs, nNumVariables, nNumParameters

Dim txtName

set oGrow = Server.CreateObject("INETGROWX.iNetGrowXCtrl.1")

n = oGrow.Connect("192.168.0.65" , 8448)

if n=0 then Response.Write "<b>status: not connected!</b>" : Response.End

if n=1 then Response.Write "<b>status: connected</b><br><br>"

nNumInputs = oGrow.GetNumInputs(1)

nNumOutputs = oGrow.GetNumOutputs(0)

nNumVariables = oGrow.GetNumVariables(0)

nNumParameters = oGrow.GetNumParameters(0)

if Request.Form("PbUpdate") = "Save Changes" then

for n=1 to nNumParameters

call oGrow.SetParameterValue(n-1, Request.Form("txtP" & n))

end if

<b>Inputs (<% = nNumInputs %>)</b><br>

<table>

for n=1 to nNumInputs

Response.Write("<tr><td>"& oGrow.GetInputName(n-1) & "</td><td>" & oGrow.GetInputValue(n-1) & "</td></tr>")

</table>

<b>Outputs (<% =nNumOutputs %>)</b><br>

<table>

for n=1 to nNumOutputs

Response.Write("<tr><td>" & oGrow.GetOutputName(n-1) & "</td><td>" & oGrow.GetOutputValue(n-1) & "</td></tr>")

</table>

<b>Variables (<% = nNumVariables %>)</b><br>

<table>

for n=1 to nNumVariables

Response.Write("<tr><td>" & oGrow.GetVariableName(n-1) & "</td><td>" & oGrow.GetVariableValue(n-1) & "</td></tr>")

</table>

<b>Parameters (<% =nNumParameters %>)</b><br>

<table>

for n=1 to nNumParameters

txtName = "txtP" & n

Response.Write("<tr><td>" & oGrow.GetParameterName(n-1) & "</td><td><input type=""text"" size=""3"" name=""" & txtName & """ value=""" & oGrow.GetParameterValue(n-1) & """></td></tr>")

</table>

</form>

</body>

</html>

Set oGrow = Nothing

Also see the sections “iNetGrowX” and “Integrating with Web Services.”
